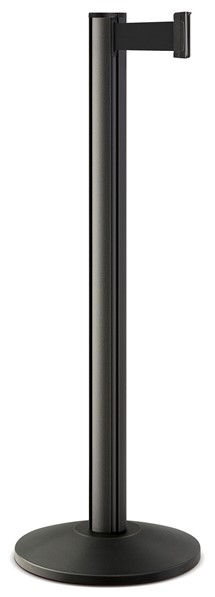

Poste con cinturón retráctil Beltrac 3000
Poste con cinturón retráctil Beltrac 3000

Poste con cinturón retráctil Beltrac 3000

50-3000A/WB/BK |
Description|
Specifications|

Tarifa de instalación de material: |

Tarifa de configuración de la correa: |

Se envia en: 3 Business Days

$184
1 Longitud del cinturón
2 Estilo de la Base
3 Acabado
4 Color del Cinturón
5 Empaque
Poste con cinturón retráctil Beltrac 3000

Se envia en: 3 Business Days

Tarifa de instalación de material:

Tarifa de configuración de la correa:

También le podría interesar.

DESCRIPCIÓN

Los postes de cinturón retráctil Beltrac® 3000 son la opción perfecta para las filas de espera, el manejo de control de multitudes y los sistemas de fila de espera. La extrusión de aluminio continuo proporciona fuerza y rigidez superior para soportar los ambientes más extremos. La base inclinada de 14” es elegante, aunque debajo de la superficie es una base sólida de acero fundido de 18 lb. que ofrece la mejor estabilidad y durabilidad de su clase. Súmele a eso el extremo original Beltrac de 4 vías que permite un rápido y fácil acceso a las soluciones de mercancía en la fila y tiene usted mucho más que simplemente un poste -usted tiene un sistema de fila de espera y manejo de multitudes en el cual las compañías más grandes del mundo han confiado durante décadas. Pero no sólo crea lo que nosotros decimos - compruebe lo que otros dicen acerca de Lavi y Beltrac..

Beltrac design USPTO® No. 2,472,720.

Advanced Retractable Belt Mechanism

  • Our viscous damping belt-braking system ensures a slow and safe retraction every time.
  • Belt mechanism is easily replaced in the field using a screwdriver.
  • Connects to most manufacturers' stanchions.

Superior Stanchion Base

  • Weighted steel stanchion base for superior stability.
  • Factory applied, rubber pads protect flooring and promote air flow, allowing wet floors to dry quickly without staining.
  • Optional weather-resistant base for outdoor use. Call for details.

Premium Barrier Post

  • The original 4-way connection remains the best, allowing a simultaneous connection of up to 4 belts or accessories.
  • One-piece post construction provides superior strength.
  • Post can receive all major manufacturers' belts.

Save on Shipping

  • Ordering Beltrac Stanchions as Knockdown reduces shipping costs by packaging them for maximum efficiency — 2 to a box.

Warranty

  • 5 years on posts. 3 years on mechanism.

Guías de Instalación:

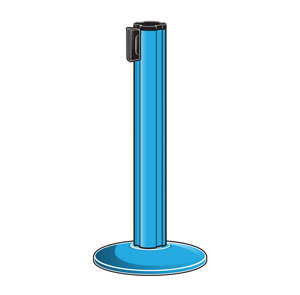

Beltrac Stanchion Assembly

  • STEP 1

    Align stanchion grooves to match the grooves on the Rubber Insert, then lower the post onto the base assembly.

  • STEP 2

    Before tightening bottom hex bolt, make sure post and base are perpendicular to one another and that there are no gaps between post and base.

  • STEP 3

    Use the supplied Allen Wrench (5/16" drive) to tighten the center Hex Bolt. Tighten minimum of 5 turns with at least 20 ft–lbs of torque.

  • ATTENTION:

    Over time, extensive handling of the stanchion may cause the rubber insert that holds the base to the post to loosen slightly. Should this happen, please use the Allen Wrench (5/16" Drive) to tighten the bottom hex bolt.

Belt End Replacement

BEFORE YOU START: Examine your new plastic Belt End carefully. It will arrive in two pieces. The Belt End Back piece has textured plastic that wraps around the back and a radius corner which should be oriented to the top. The Belt End Front piece has a dovetail shape that fits into the Beltrac post groove. The lip on the front piece should be oriented to the top.

IMPORTANT: The top edge of the Belt Ribbon and the top of the Belt End must be oriented “top-to-top” throughout assembly or the newly assembled Belt End will not work properly. "Mark" the top edge of the Belt Ribbon with a paperclip before knotting to ensure correct assembly.

  • STEP 1

    Pull enough Belt Ribbon out from post to make a loose knot. This will keep it from retracting back into the unit and will make it easier to work with. Take note of the top edge of the Belt Ribbon and place a paper clip to mark the top.

  • STEP 2

    Cut off the old Belt End and thread the Belt End Back piece onto the belt ribbon. Double-check that the radius corner and the belt ribbon are oriented to “TOP”. The radius corner should also be facing the unit.

  • STEP 3

    Position Wedge in Crimping Tool so that the back edge sits against the screws. Feed the belt ribbon into the Wedge, making sure it is centered and fully seated to the back of the Wedge. Apply pressure with the Crimping Tool to secure.

  • STEP 4

    Fold Ribbon/Wedge over and fit it snugly into the Belt End Back piece. Secure the Belt End Front piece to the Belt End Back piece using the 2 provided screws (there is only one way it will fit). Untie the knot and retract the belt to complete installation.
