Adjustable Handrail Bracket for 1.67-inch OD Tubing

49-309P/424 |

Setup Fee: none |

Ships in: 3 Business Days

Due to high demand for certain products, shipping lead times may be longer than shown. We apologize for any inconvenience.

Adjustable Handrail Brackets provide flexibility and forgiveness in railing installations.

The structural and elevation variances encountered in buildings or sites can cause headaches when trying to align handrails. But with the 309 series of 316-grade stainless steel adjustable handrail brackets, these issues virtually disappear. The unparalleled adjustments allow you to compensate up to 2” in height, along with an unlimited degree of pitch and rotation, providing maximum flexibility when installing handrail.

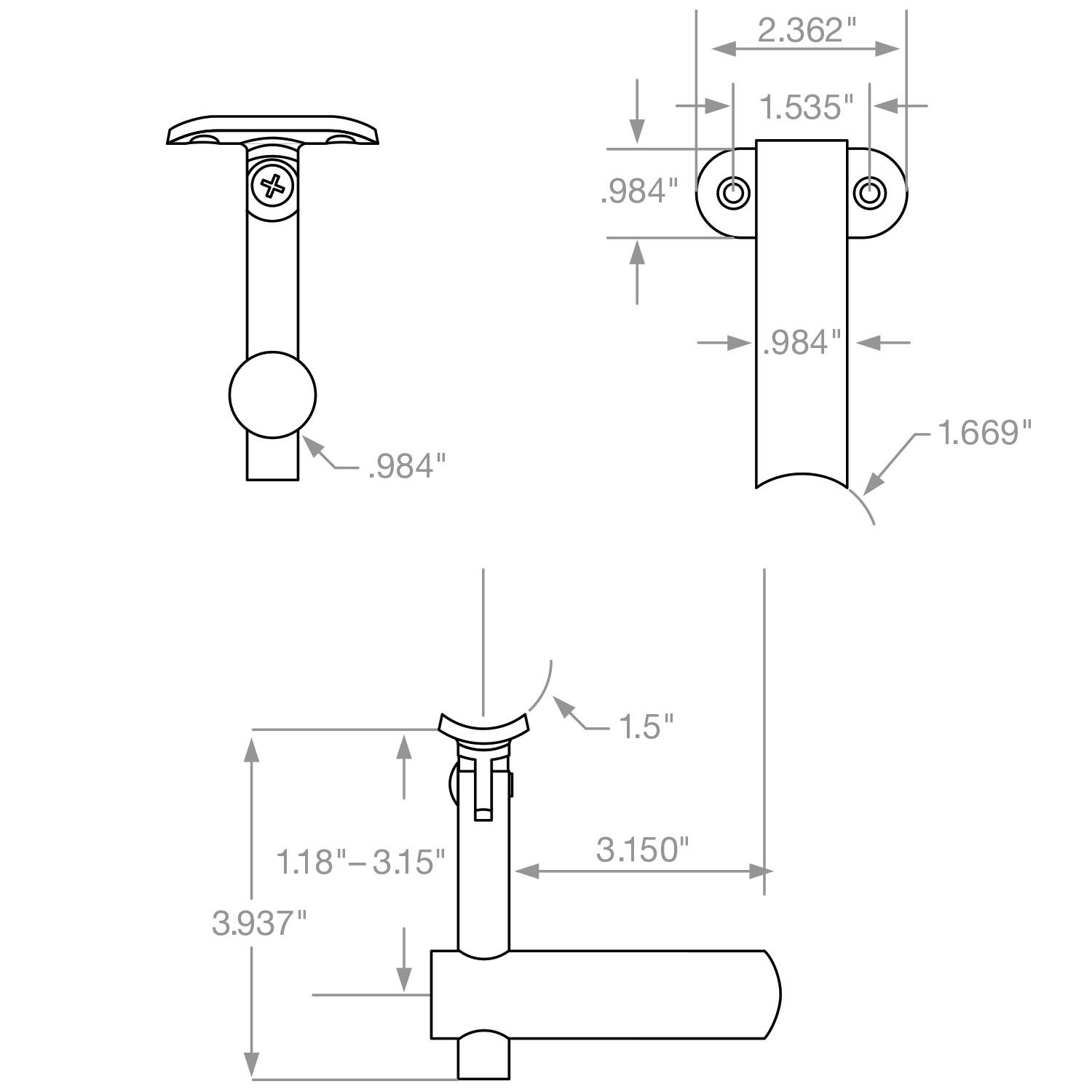

This mounting bracket is coped to blend seamlessly with our 1.67” (42.4mm) x .080” wall stainless steel tubing and features the same beautiful design enjoyed across the series. Designed to receive 1.5” diameter handrail tubing. Meets building code clearance requirements.

1 Materials/Finishes
2 Tubing OD
