Summary: The Adjustable Handrail Bracket for Square Posts (49-309PF/1H) is a flat-back adjustable handrail bracket from Lavi Industries that mounts to a square post or other flat metal surface and carries a 1.5-inch OD round handrail. It is the rail square bracket for the Lavi 316 square post railing systems. It creates a second, graspable handrail beside a glass, cable, or cross bar guard. The 309 series adjusts up to 2 inches in height with unlimited pitch and rotation, so one bracket follows a stair, landing, or ramp. The flat-backed plate matches the stem diameter, and the bracket is designed to meet building code clearance requirements for handrails. It is made in 316 satin stainless steel, rated for outdoor and coastal use, and pairs with Lavi A110 1.5-inch tubing and Loctite 326 metal adhesive. It ships from US inventory, and a flat-saddle version for square top rail is the 309PF/F.
Key specs: SKU=49-309PF/1H; Material=316-Grade Satin Stainless Steel (welded specialty; marine-capable; HIGH-SPECIFICATION single material option); Tubing OD=1.5" handrail (PRIMARY pairing with A110 1.5" Round Tubing); Product Type=Adjustable Handrail Bracket — Modern Commercial FLAT-back plate bracket variant
Adjustable Handrail Bracket for Square Posts

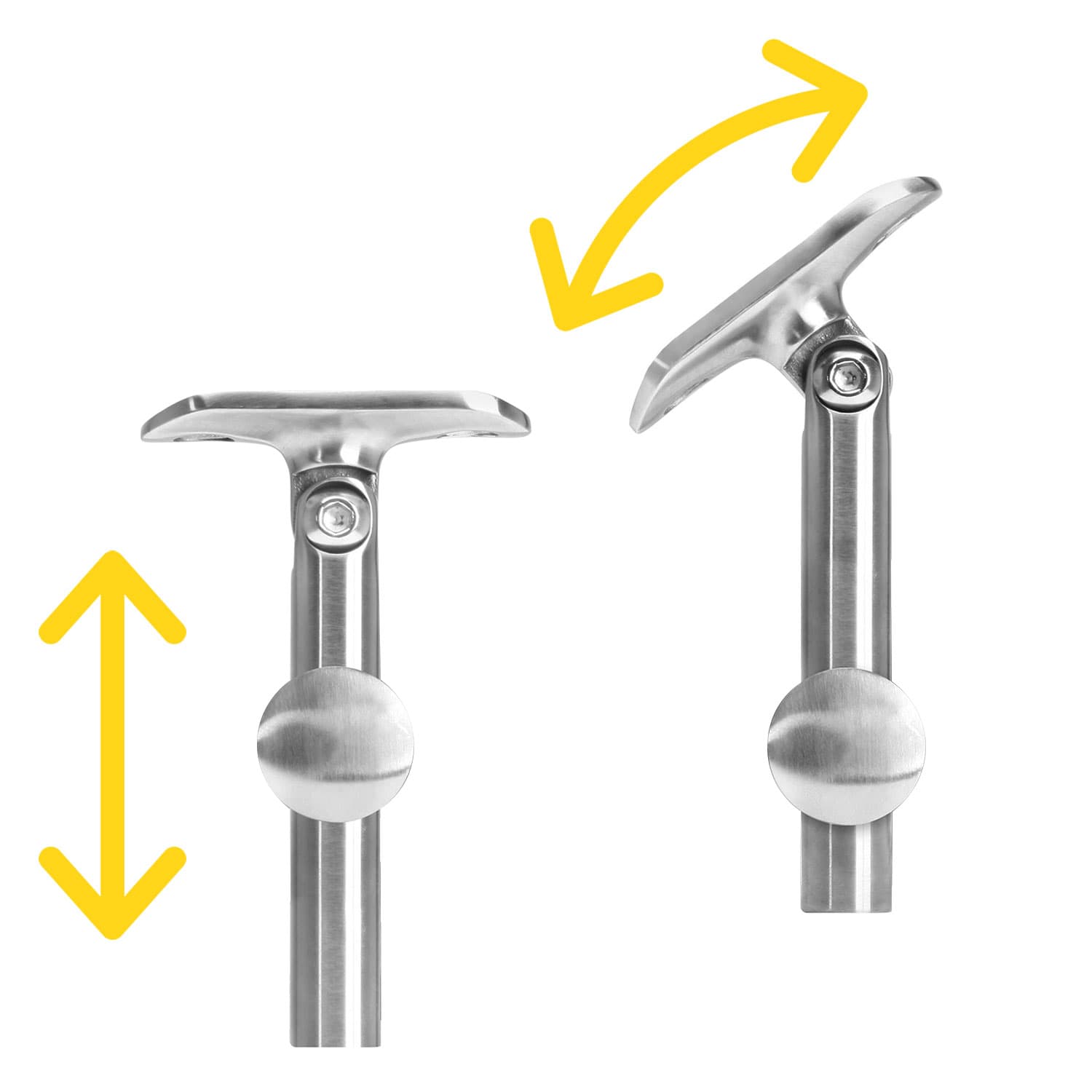

Mount a continuous 1.5" handrail to square posts and let one bracket handle every angle on the run — stairs, landings, curved walls, and corner returns. It adjusts 2" in height plus unlimited pitch and rotation, so a single part follows changing elevations. Made from 316-grade satin stainless steel (49-309PF/1H).
