Summary: The Adjustable Handrail Bracket for 1.67-inch OD Tubing (49-309P/424) is a post-mount adjustable handrail bracket from Lavi Industries with a coped back plate that seats against a 1.67-inch OD round post and carries a 1.5-inch OD handrail. It is the 1.67 inch handrail bracket for the Lavi 316 round post systems. It adds a graspable handrail beside a C.A.T. cable, glass, or cross bar guard. The coped plate blends with Lavi A114 1.67-inch by .080-inch wall 316 tubing. Like the other 309 series brackets it adjusts up to 2 inches in height with unlimited pitch and rotation and is designed to meet building code clearance requirements. It is made in 316 satin stainless steel, rated for outdoor, coastal, and marine use. It ships from US inventory and pairs with A110 1.5-inch handrail tubing and Loctite 326 metal adhesive for the post joint.
Key specs: SKU=49-309P/424; Material=316-Grade Satin Stainless Steel (welded specialty; marine-capable); Product Type=Adjustable Handrail Bracket — 309 series ROUND POST variant; STRUCTURAL CONNECTOR
Adjustable Handrail Bracket for 1.67-inch OD Tubing

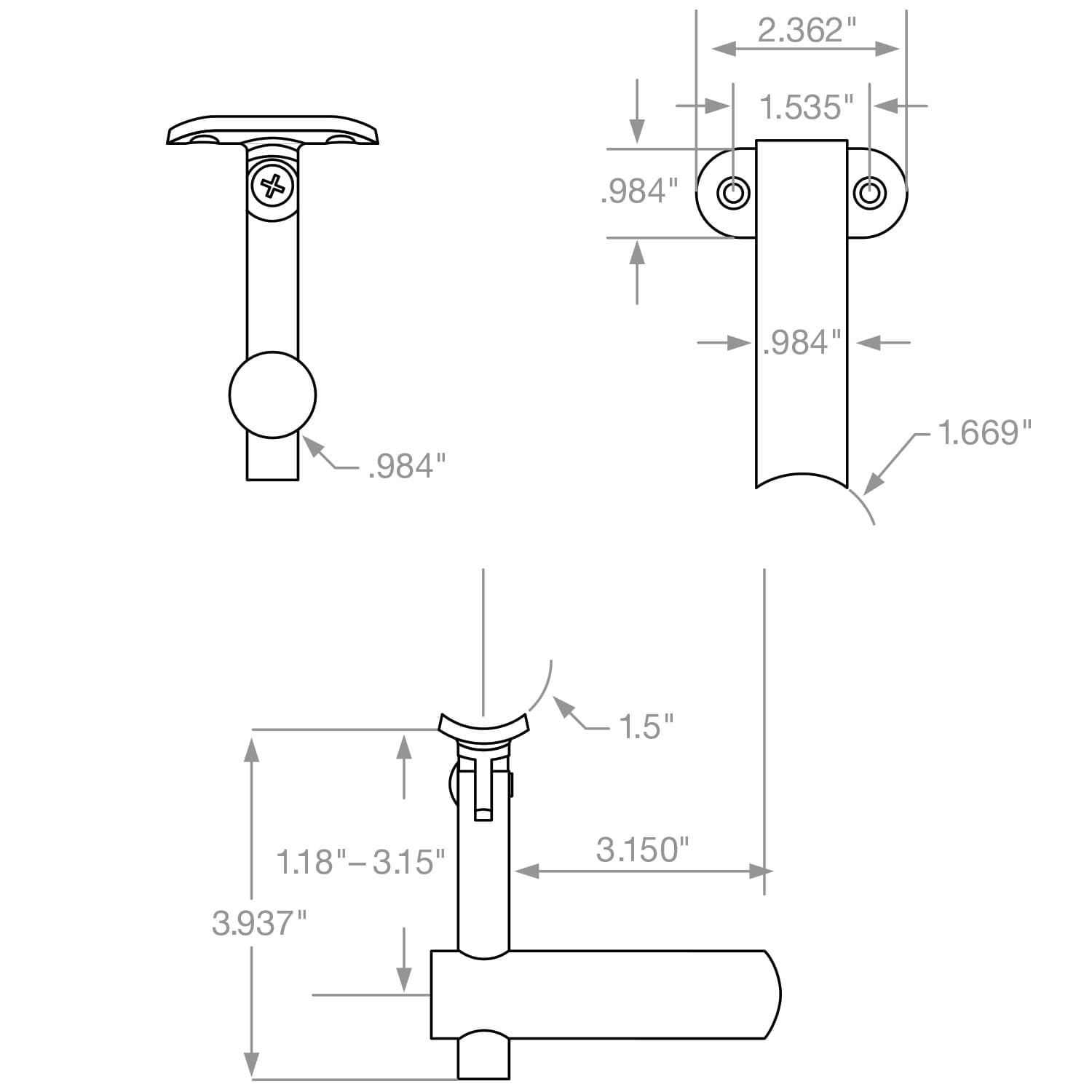

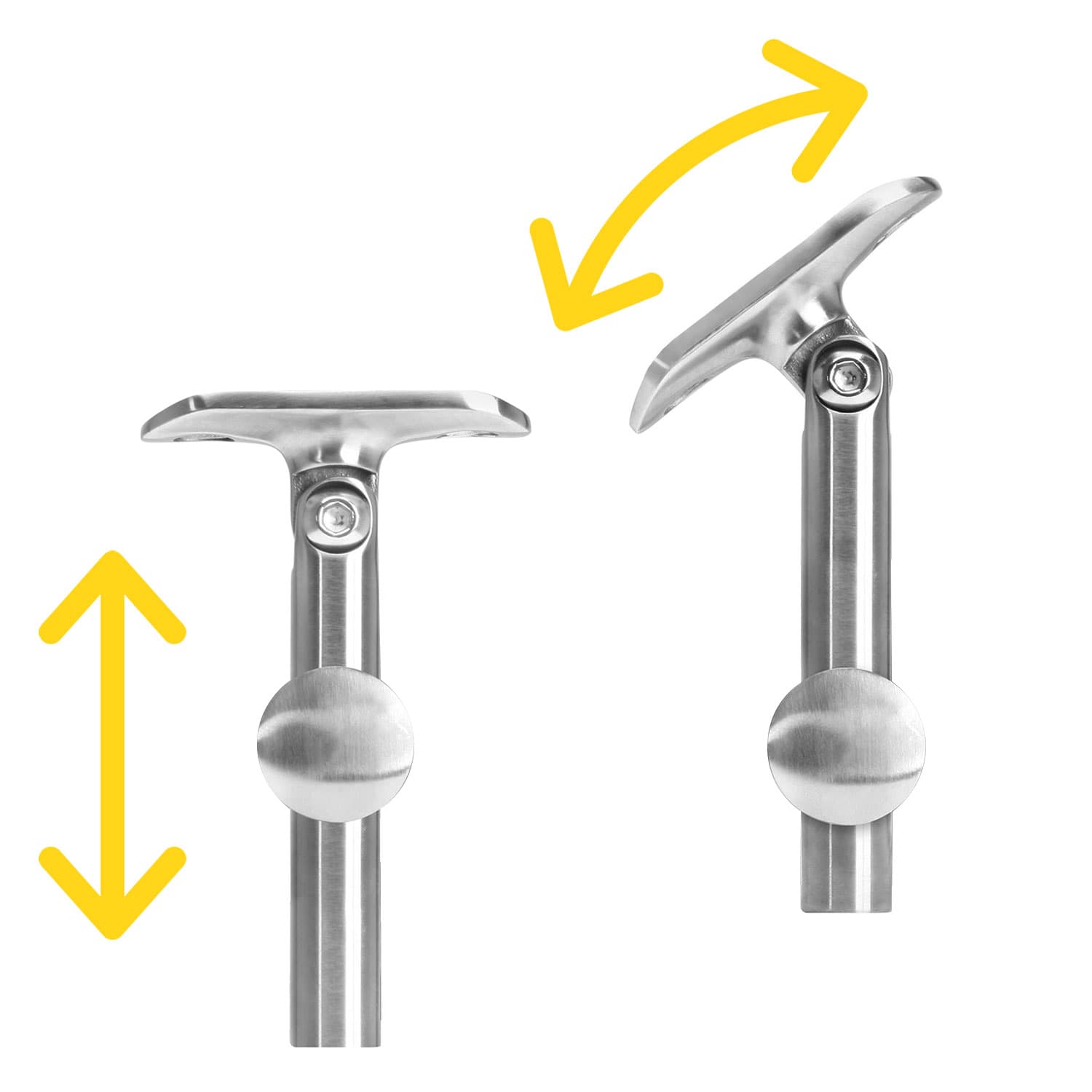

Hold a 1.5" handrail firmly off a 1.67" OD round post or pipe, with the coped back plate seated flush against A114 1.67" (42.4mm) x.080" wall tubing. This adjustable bracket dials in 2" of height, unlimited pitch, and rotation, so the rail follows the stair. 316 satin stainless, marine-capable.
