Summary: The Adjustable Wall-Mounted Handrail Bracket (49-309/1H) is a wall-mount handrail bracket from Lavi Industries that carries a 1.5-inch OD handrail and adjusts on site to the angle of the run. It is the wall version of the Lavi 309 series adjustable handrail brackets, which compensate up to 2 inches in height with unlimited pitch and rotation. One bracket follows a raked stair, a ramp, or a level corridor without shimming. A 2-inch diameter wall plate hides the mounting screws, and the bracket is designed to meet building code clearance requirements for handrails. It is made in 316 satin stainless steel, rated for outdoor and coastal installations as well as interiors. It ships from US inventory and pairs with Lavi A110 1.5-inch tubing, the 608/1H radius wall return, and the 600PF/1H16 knurled end cap. The square post and 1.67-inch round post versions are the 309PF/1H and 309P/424.
Key specs: SKU=49-309/1H; Material=316-Grade Satin Stainless Steel (welded specialty; marine-capable; HIGH-SPECIFICATION single material option); Tubing OD=1.5" handrail (PRIMARY pairing with A110 1.5" Round Tubing); Product Type=Adjustable Wall-Mounted Handrail Bracket — 309 series Wall-Mount variant
Adjustable Wall-Mounted Handrail Bracket

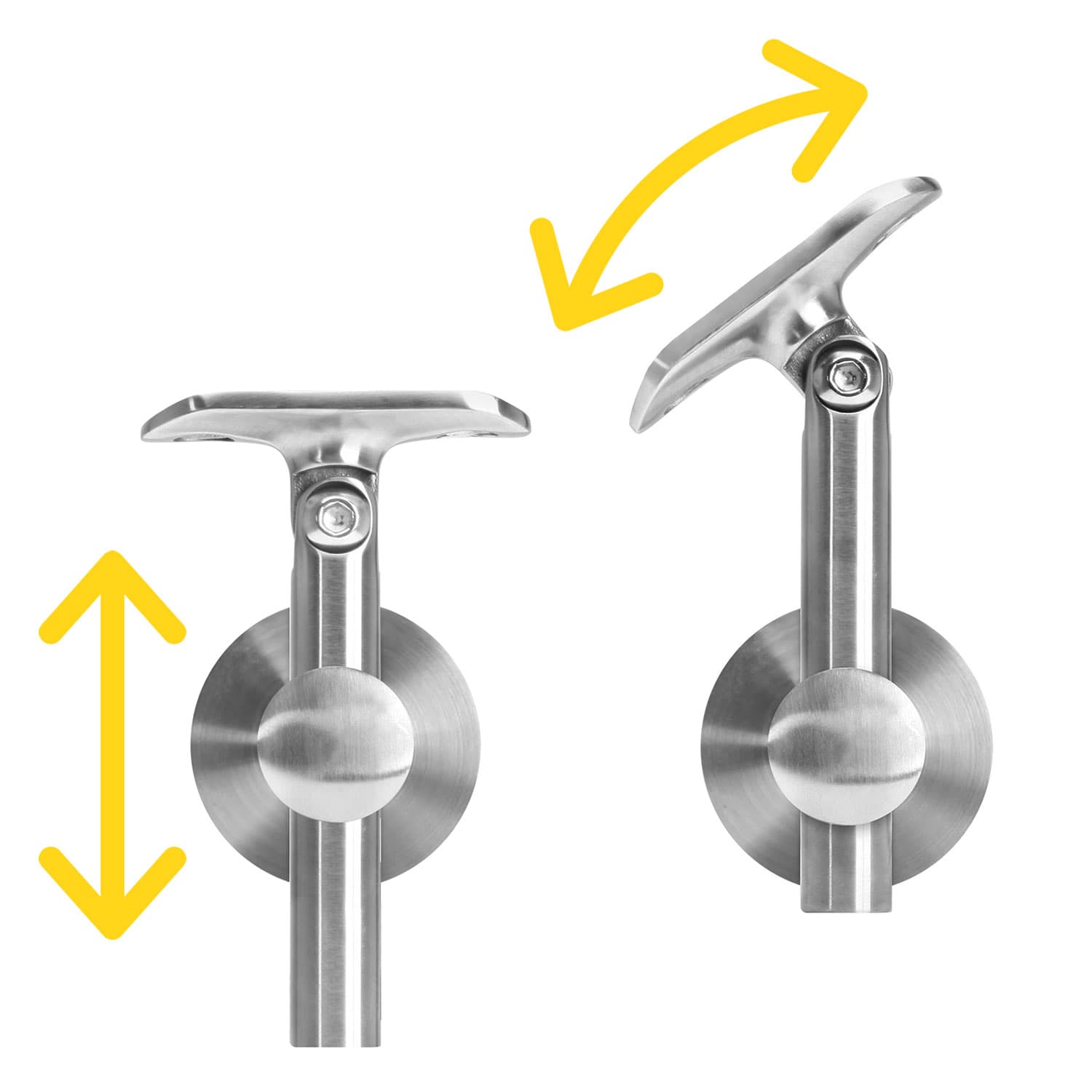

Stairs, ramps, and level corridors each set a different rail angle, and this adjustable bracket accommodates all of them. Wall-mounted, it gives a 1.5" handrail 2" of height adjustment, unlimited pitch, and rotation, all dialed in on site. A 2" wall plate with hidden screws keeps the appearance clean. 316 satin stainless, marine-capable.
